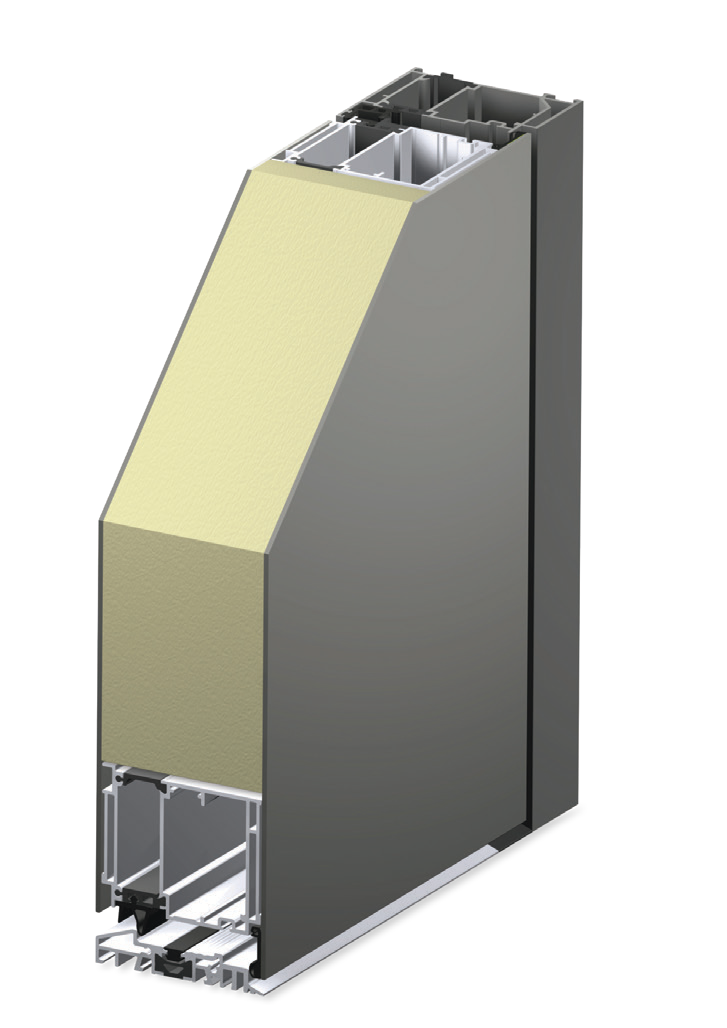

Schüco VISION 90
Ud of 0,89 W/m2K
Click to add your own text here
Profile description:
• Overall construction depth: 90 mm
• Door leaf thickness: 90 mm
• 3-chamber profile construction with single insulation
level
• 3 seals in the door leaf and frame
• Door leaf with full-surface panel on both sides
• Shear-free hybrid composite to compensate for the
bimetal effect
• Flush design of door leaf and frame on the outside
and inside
• Thermally insulated aluminium threshold EV1

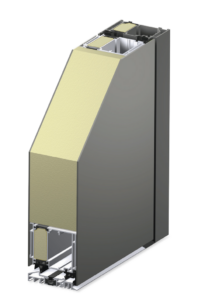

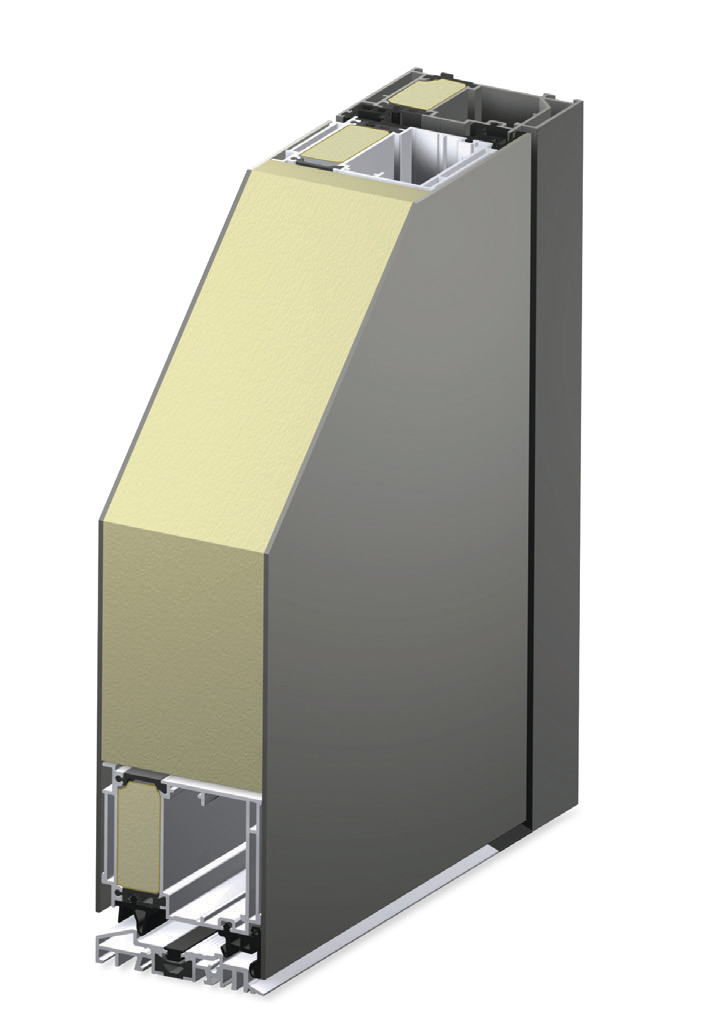

Schüco VISION 90 SI
Ud of 0,80 W/m2K
Click to add your own text here
Profile description:
• Overall construction depth: 90 mm
• Door leaf thickness: 90 mm
• 3-chamber profile construction with single insulation level
• 4 seals in the door leaf and frame
• XPS-filled frame and door leaf profiles
• Door leaf with full-surface panel on both sides
• Shear-free hybrid composite to compensate for the bimetal effect
• Flush design of door leaf and frame on the outside and inside
• Thermally insulated aluminium threshold EV1

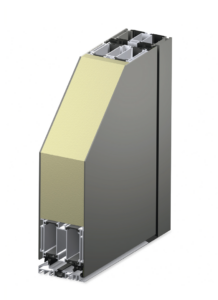

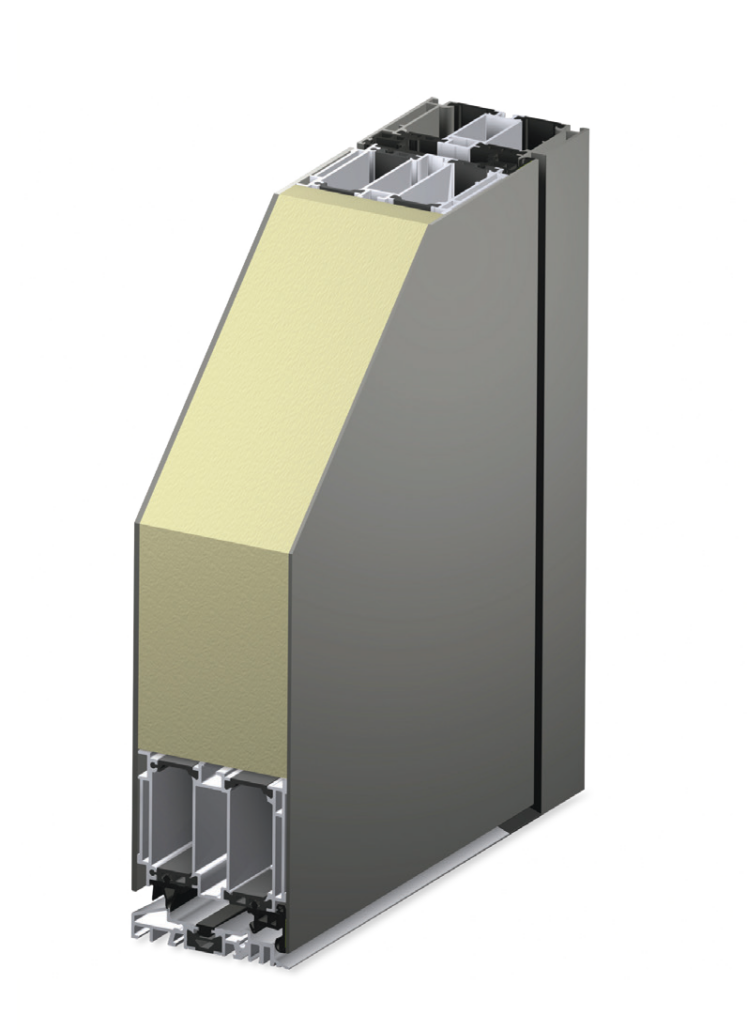

Schüco AD UP 90
Ud of 0,74 W/m2K
Click to add your own text here
Profile description:
• Overall construction depth: 90 mm
• Door leaf thickness: 90 mm
• 5-chamber profile construction with double insulation level
• 4 seals in the door leaf and frame
• Door leaf with full-surface panel on both sides
• Shear-free hybrid composite to compensate for the bimetal effect
• Flush design of door leaf and frame on the outside and inside
• Thermally insulated aluminium threshold EV1

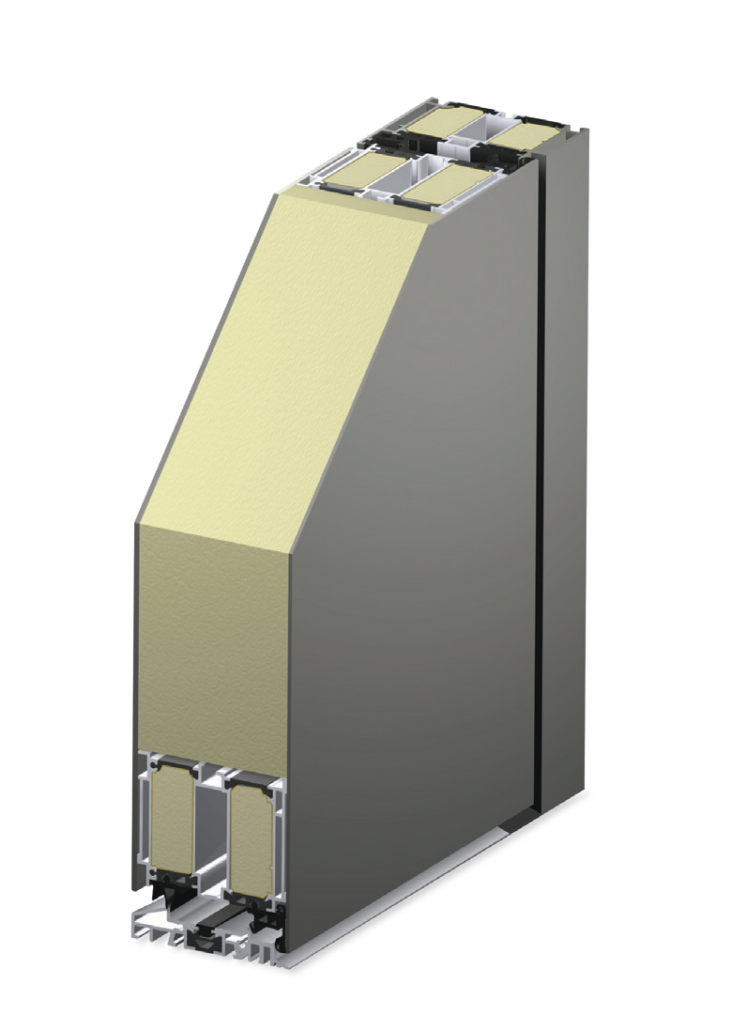

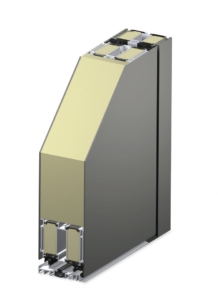

Schüco AD UP 90 SI
Ud of 0,68 W/m2K
Click to add your own text here
Profile description:
• Overall construction depth: 90 mm
• Door leaf thickness: 90 mm
• 5-chamber profile construction with double insulation level
• 4 seals in the door leaf and frame
• XPS-filled frame and door leaf profiles
• Door leaf with full-surface panel on both sides
• Shear-free hybrid composite to compensate for the bimetal effect
• Flush design of door leaf and frame on the outside and inside
• Thermally insulated aluminium threshold EV1

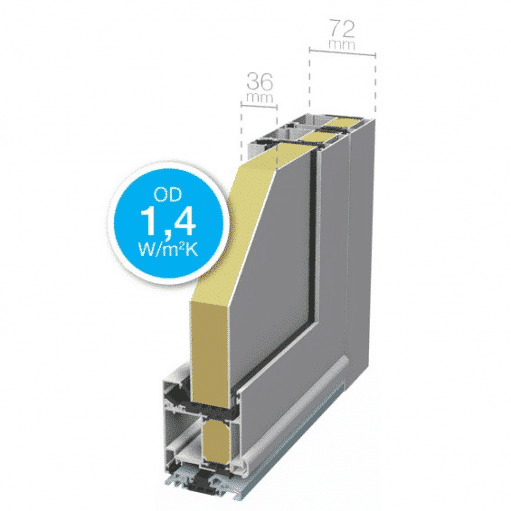

Heroal D72
Profile description:
- Three-layer ALU profile Heroal
- MAX Ud=1.4 W/m²K
- Double sealing
- Thermal aluminum threshold EV1
- Inserted filler 36 mm thick
- Glass Ug= 0.7 W/m²K (three-layer)
